Crimp Insert Heavy Duty Multi Pin Connector Female And Male Replace Han Dd 24 Pos

Name: Crimp Insert Heavy Duty Multi Pin Connector Female And Male Replace Han Dd 24 Pos
Brand: ZJHK
Price: 10 USD

Buy cheap Crimp Insert Heavy Duty Multi Pin Connector Female And Male Replace Han Dd 24 Pos product

Brand Name : ZJHK

Model Number : HDD-024-MC/HDD-024-FC

Certification : CE, SGS, CQC, RoHS

Place of Origin : China

MOQ : 1PC

Price : 10 - 49 Pieces/6.66 USD ≥50pieces/6.2 USD

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 pcs per month

Delivery Time : 5 Days

Packaging Details : Standard Export Cartons

Order No. : 09160243001/09160243101

Connector Type : Ultra High Density Connector

Inserts : Polycarbonate Sabic 3412 ECR

Wire Connection : Crimp

Housing Model : H6B Series

Contacts No. : 24 + PE

Current : 10A

Voltage : 250V

Contact Now

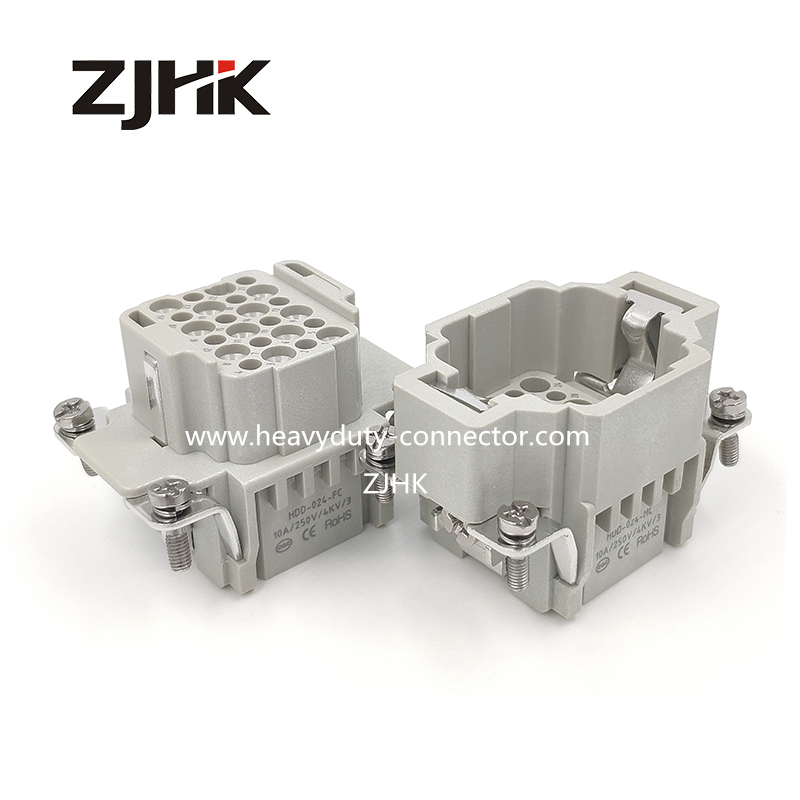

ZJHK HDD- 024-MC/FC

Inserts, Crimp termination, Male and Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 10A, Contacts: 24,

ROBOT connector

Part number: 09160243001 & 09160243101

Technical data

Identification
Category	Inserts
Series	HDD
Version
Termination method	Crimp termination
Gender	Male and Female
Size	6 B
Number of contacts	24Pin
PE contact	Yes
Details	Please order crimp contacts separately.
Technical characteristics
Conductor cross-section	0.14 ... 2.5 mm²
Rated current	10 A
Rated voltage	250 V
Rated impulse voltage	4 kV
Rated voltage acc. to UL	600 V
Rated voltage acc. to CSA	600 V
Insulation resistance	≥ 10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Mating cycles	≥ 500
Material properties
Material (insert)	Polycarbonate
Material flammability class acc. to UL 94	V-0
RoHS	compliant
China RoHS	e
Commercial data
Country of origin	China
Certificate:	CE, ROHS, CQC, SGS,CCC, ISO2008:9001

Crimp Insert Heavy Duty Multi Pin Connector Female And Male Replace Han Dd 24 Pos
Application:

Machinery
Energy Distribution
Automation
Construction Machine
Rail Transportation
Robotics
Light and Sound

Crimp Insert Heavy Duty Multi Pin Connector Female And Male Replace Han Dd 24 Pos

Specification - Housing H6B

1) IP65

2) Surface and Open Mounting Housing

3) Side and Top Entry Hoods

4) Stainless Steel Levers

5) with protection covers in plastic or metal material

6) PG thread PG13.5, PG16, PG21, PG29 or metric threads M20, M25

7) High Construction for large wire is available

Our Services

1. Low MOQ: It can meet your business very well.

2. Good services: We treat you as our friends.

3. Packaging: Package will do after several discussions with you.

4. Cheap price: The products are directly from our factory. So it saves a lot secondary cost.

5. Good quality: The MP only will start after you confirm the samples and the MP products will do 100% inspection before shipping.

6. OME accepted: Please send us your design and other important information. OEM are always welcome.

Crimp Insert Heavy Duty Multi Pin Connector Female And Male Replace Han Dd 24 Pos
