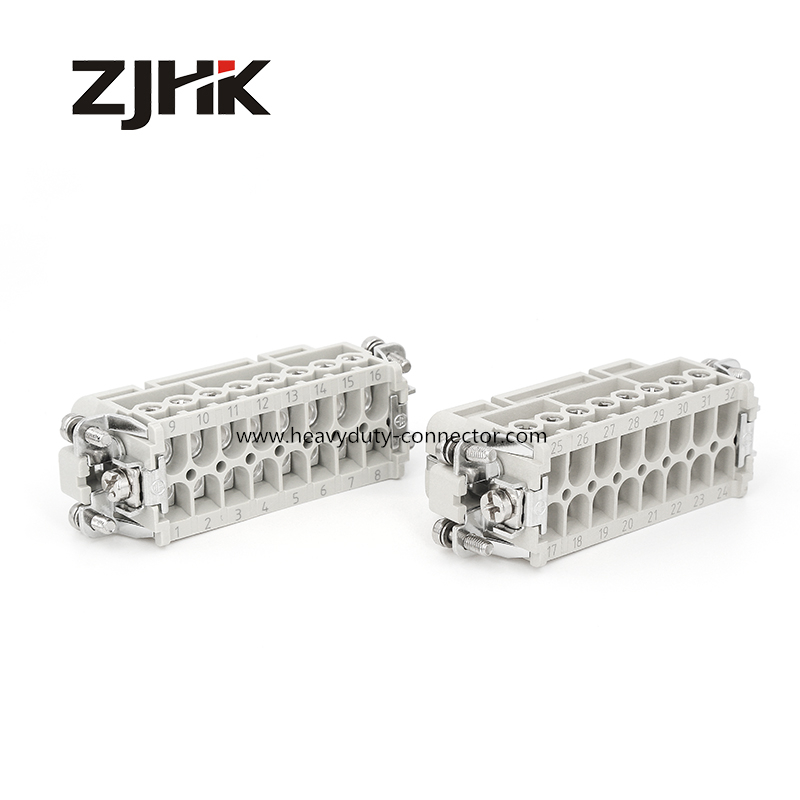

32 Pin Screw Terminal Double 16 Pin Male And Female Connector Heavy Duty Long Life

Name: 32 Pin Screw Terminal Double 16 Pin Male And Female Connector Heavy Duty Long Life
Brand: ZJHK
Price: 1 USD

Buy cheap 32 Pin Screw Terminal Double 16 Pin Male And Female Connector Heavy Duty Long Life product

Brand Name : ZJHK

Model Number : HA-032-M

Certification : CE, RoHS, SGS, CQC,

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 pcs per month

Delivery Time : 7 Days

Packaging Details : Standard Export Cartons

Order Number : 09200162612&09200162613

Model Type : Slim Connector HA Series

Material : Polycarbonate Sabic 3412 ECR

Wire Connection : Screw

Housing : H32A Series

Nos of Contact : 32

Contact Now

Inserts, Screw termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 32 A, Contacts: 32, Conductor cross-section: 1.0 ... 2.5 mm² , Copper alloy, Silver plated

Part number: 09200162612&09200162613

Technical data

Identification
Category	Inserts
Series	HA
Version
Termination method	Screw termination
Gender	Male
Size	32 A
Number of contacts	32
PE contact	Yes
Technical characteristics
Conductor cross-section	1.0 ... 2.5 mm²
Rated current	16 A
Rated voltage	250 V
Rated impulse voltage	4 kV
Pollution degree	3
Rated voltage acc. to UL	600 V
Insulation resistance	≥ 10¹⁰ Ω
Limiting temperature	-40 ... +125 °C
Tightening torque	0.5 Nm
Mating cycles	≥ 500
Material properties
Material (insert)	Polycarbonate
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
RoHS	compliant with exemption
Commercial data
Packaging size	1
Net weight	132 g
Country of origin	China
eCl@ss	Contact insert for industrial connectors

Match:
Hood and Housing - H32A Series
Hood - Side Entry / Top Entry - High Construction for larger wire is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Double in Stainless Steel or Zinc plated Steel
Protective covers: plastic or metal cover optional
Thread:M25,M32,PG21,PG29
