16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw 09330102601

Name: 16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw 09330102601
Brand: ZJHK
Price: 1 USD

Buy cheap 16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw 09330102601 product

Brand Name : ZJHK

Model Number : HE-010-M

Certification : CE, RoHS, SGS, CQC,

Place of Origin : China

MOQ : 5

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 100,000 pcs per month

Delivery Time : 7 Days

Packaging Details : Standard Export Cartons

Order Number : 09330102601

Model Type : Standard Connector HE Series

Material : Polycarbonate Sabic 3412 ECR

Wire Connection : Screw

Housing : H10B Series

Nos of Contact : 10

Contact Now

Match Han 10 E BU-S Insert Female part.

Inserts, Screw termination, Male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated

Support Industrial 4.0 solution

Hot runner connector

Technical data

Identification
Category	Inserts
Series	HE
Version
Termination method	Screw termination
Gender	Male
Size	10 B
With wire protection	Yes
Number of contacts	10
PE contact	Yes
Technical characteristics
Conductor cross-section	0.75 ... 2.5 mm²
Conductor cross-section	AWG 18 ... AWG 14
Rated current	16 A
Rated voltage	500 V
Rated impulse voltage	6 kV
Pollution degree	3
Insulation resistance	> 10¹⁰ Ω
Contact resistance	≤ 1 mΩ
Limiting temperature	-40 ... +125 °C
Stripping length	7.5 mm
Tightening torque	0.5 Nm
Mating cycles	≥ 500
Material properties
Material (insert)	Polycarbonate
Colour (insert)	RAL 7032 (pebble grey)
Material (contacts)	Copper alloy
Surface (contacts)	Silver plated
Material flammability class acc. to UL 94	V-0
RoHS	compliant with exemption
Commercial data
Packaging size	1
Net weight	66 g

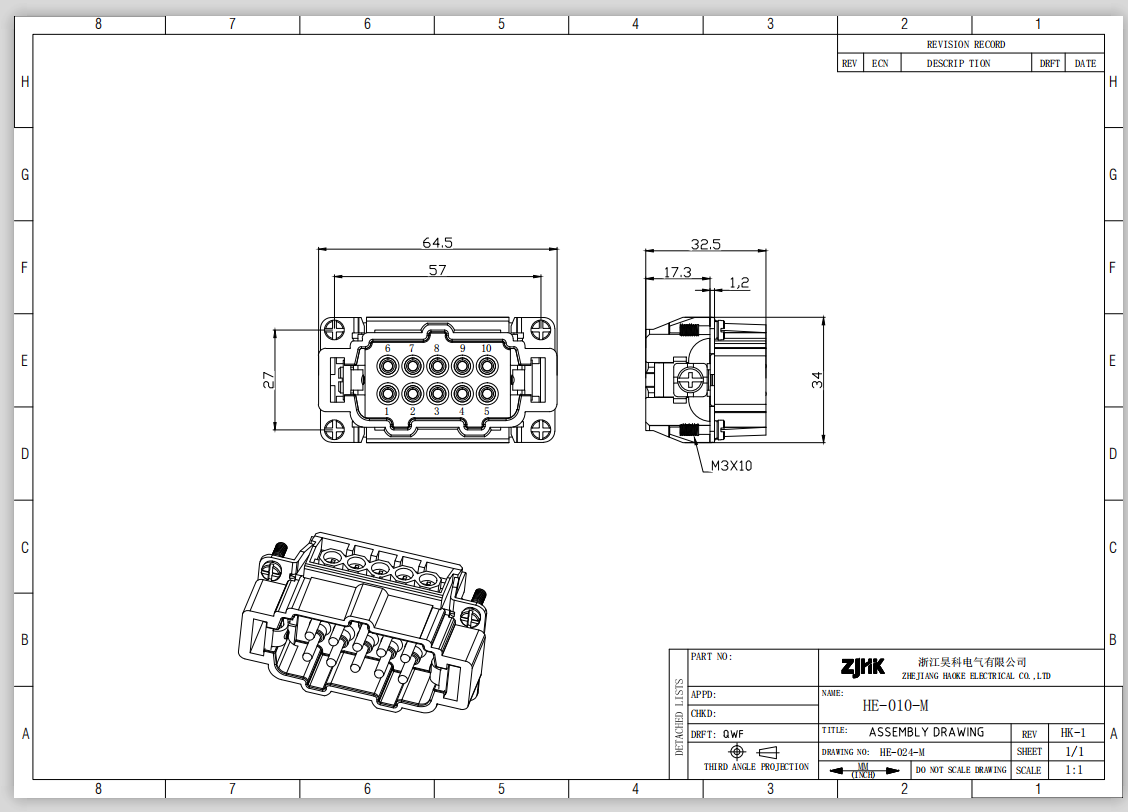

Design drawing:

16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw 09330102601

16A 10 Pin Rectangular Connector Replace Harting Han E 10 Pos M Insert Screw 09330102601

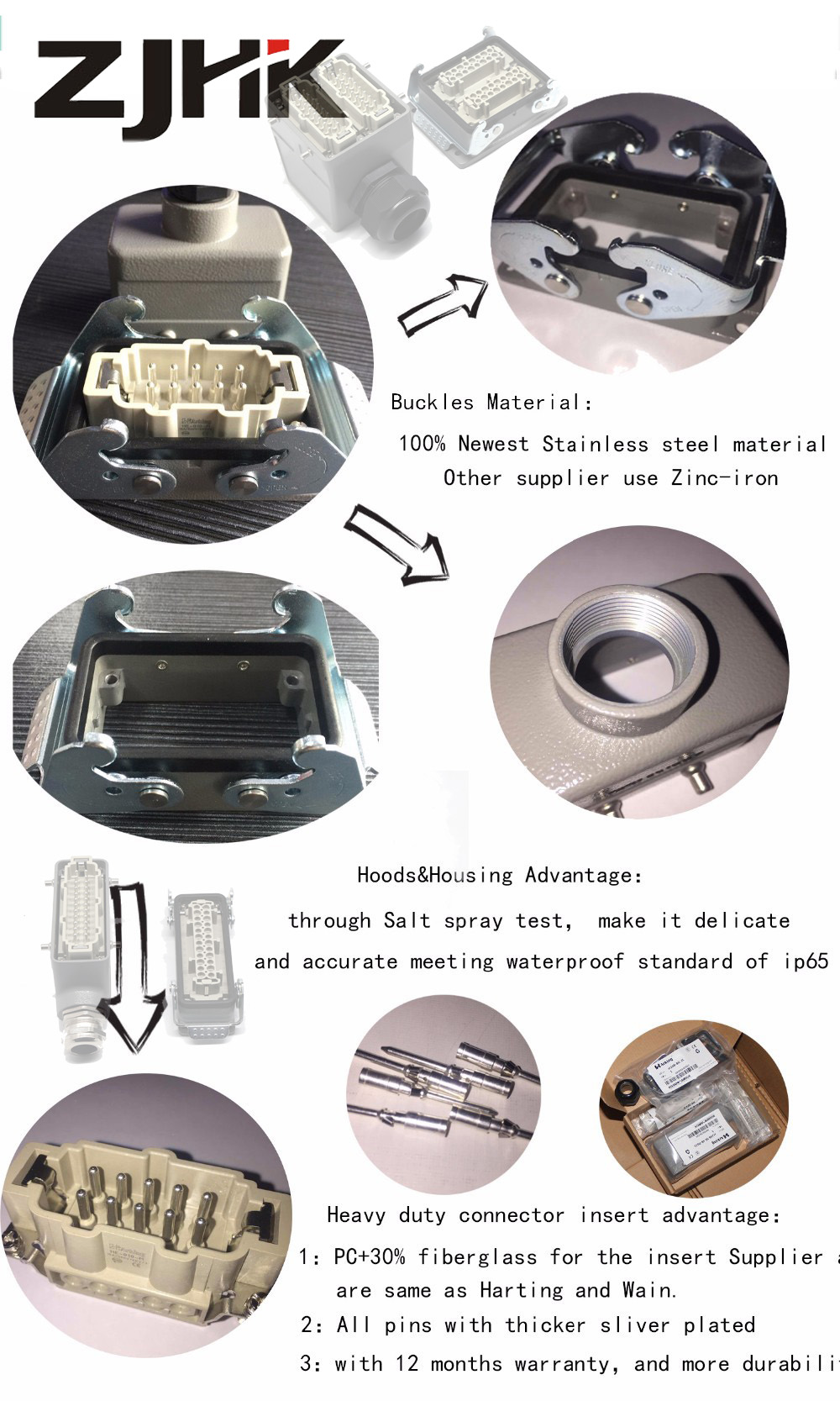

What's our advantage:
